SPi 35-Way Automotive Connector

The SPi 35 way automotive connector is a compact, high-density PCB connector designed for automotive and embedded electronic applications. It features 35 connection positions with a 2.5 mm pitch, allowing multiple circuits to be integrated into a single compact interface.

The housing is made from PA66-GF20 (20% glass-fiber-reinforced Polyamide 6.6), providing good rigidity and dimensional stability. The metal components feature a tin-plated finish for reliable electrical connection and surface protection.

With an overall length of approximately 120 mm and a width of approximately 22 mm, the connector is designed for PCB integration and is suitable for applications requiring a compact 35-way connection solution.

Key specifications: 35 ways | 2.5 mm pitch | PCB mounting | 1.6 mm recommended PCB thickness.

Designed to work with Tyco Electronics/ AMP 925380 + 925379 + 928544

For Bulk Orders : Contact us by mail

📄 Technical Drawing / Datasheet:
[PDF – 940630-1787_35_ways_spi_public_sheet_watermarked ]

[STEP – 940630-1787_spi_step.zip ]

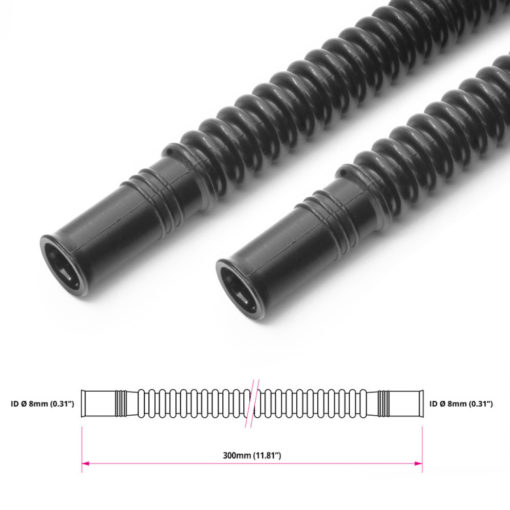

In-tank convoluted black nylon fuel hose Ø8mm 300mm Length
